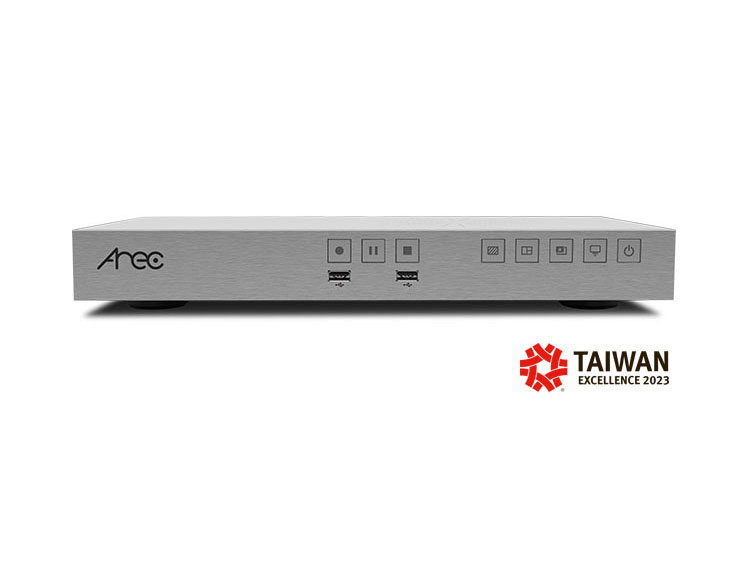

LS-860M Media Station
Product Highlights

Versatile Inputs: HDMI*4, Line in*4, and IP Streaming Channels*4
Up to 4 Full HD Video Sources Capturing, Mixing, Switching, Recording and Live Streaming
NDI®|HX Support for NDI-based Video Production
Support SRT Streaming Protocol
Supports Overlay PNG Images with Transparent, Opaque, and in Between
Up to 4-inputs Sources Capturing and 5 Recording Video Outputs
Available APIs for Software Server Integration
LS-860M Model Supports NDI|HX Protocol for NDI-based Video Production
With Optional USB Triple Foot Switch Pedal, LS-860M makes it easier and hand-free to record video in medical places

FEATURES

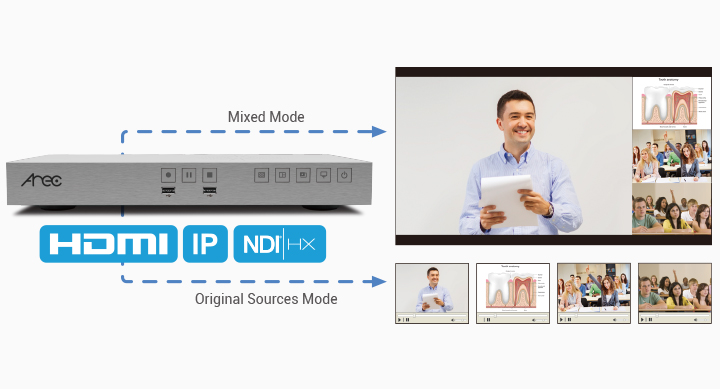

CAPTURE UP TO 4 VIDEO SOURCES AT
ONCE WITH VERSATILE INPUTS
Via HDMI*4 and IP streaming inputs, AREC LS-860M Media Station supports up to 4 Full HD 1080p video sources capturing, mixing, switching, recording and live streaming. LS-860M is compatible with network-based H.264 RTMP/ RTP/ RTSP (video only)/ NDI®|HX sources and Secure Reliable Transport (SRT) protocol. With LS-860M, users can choose 1 mixed video plus 4 individual videos recording for flexible use.

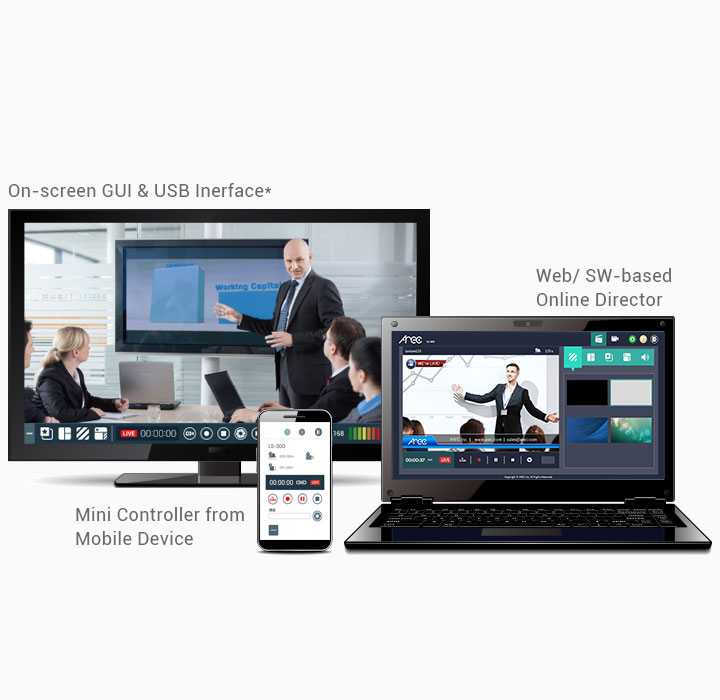

INTUITIVE AND VERSATILE CONTROL
OPTIONS
AREC Online Director supports a wide range of control options, including Web Browser (Chrome, Edge), Software Application (Windows, Mac OS), Touch-Friendly Graphical User Interface*, and Mini Controller from Mobile Device. Mini Controller and GUI design bring easier and faster control than ever. Control buttons on the front of LS-860M are also provided.

* To achieve touch control, please using with a self-prepared touch display together. The on-screen GUI also supports mouse device control through USB connection.

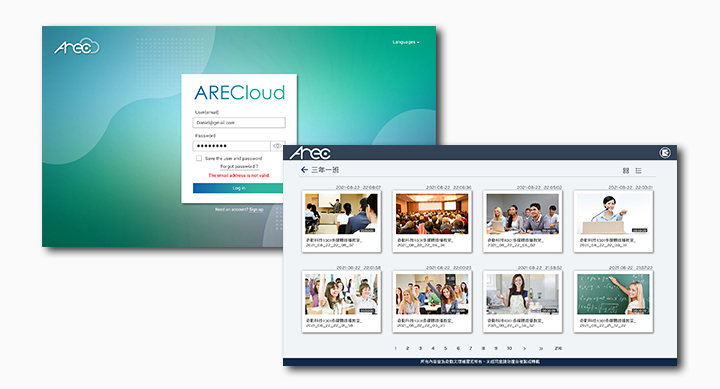

REMOTE MANAGEMENT
With “AREC Station Manager", “ARECloud” and “AREC NAS VOD System”, all AREC Media Stations in the organization and the recorded videos can be integrated into 1 system, allowing to monitor and central control remotely.

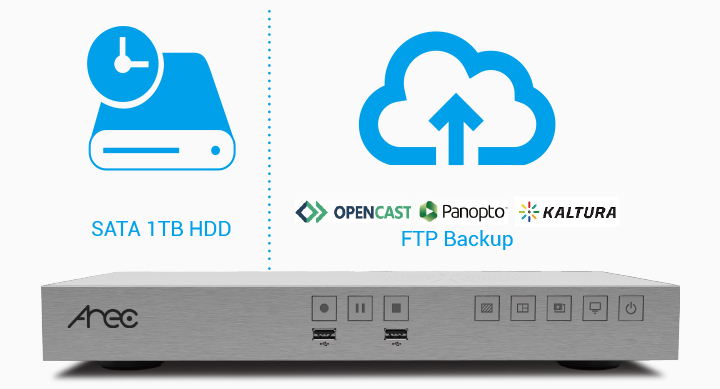

BUILT-IN HARD DRIVE STORAGE &
BACKUP
LS-860M allows saving recording videos on the internal 1TB hard drive. To increase security, LS-860M can automatically backup/upload recordings to AREC MediaCenter, AREC NAS VOD System, FTP, SFTP, Opencast, Panopto, and Kaltura.
